GQD161.1A
119.26 €

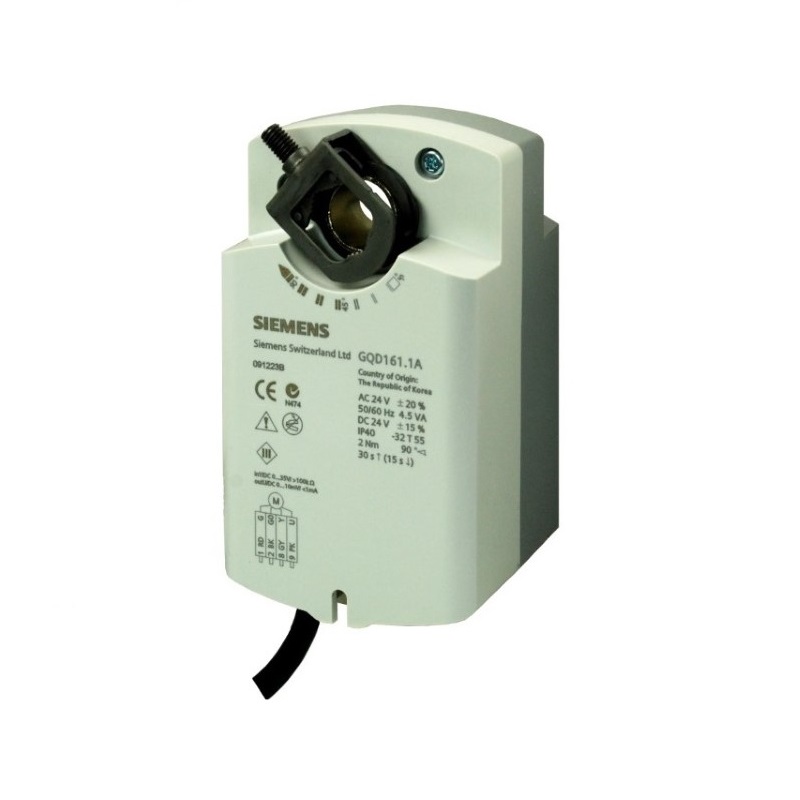

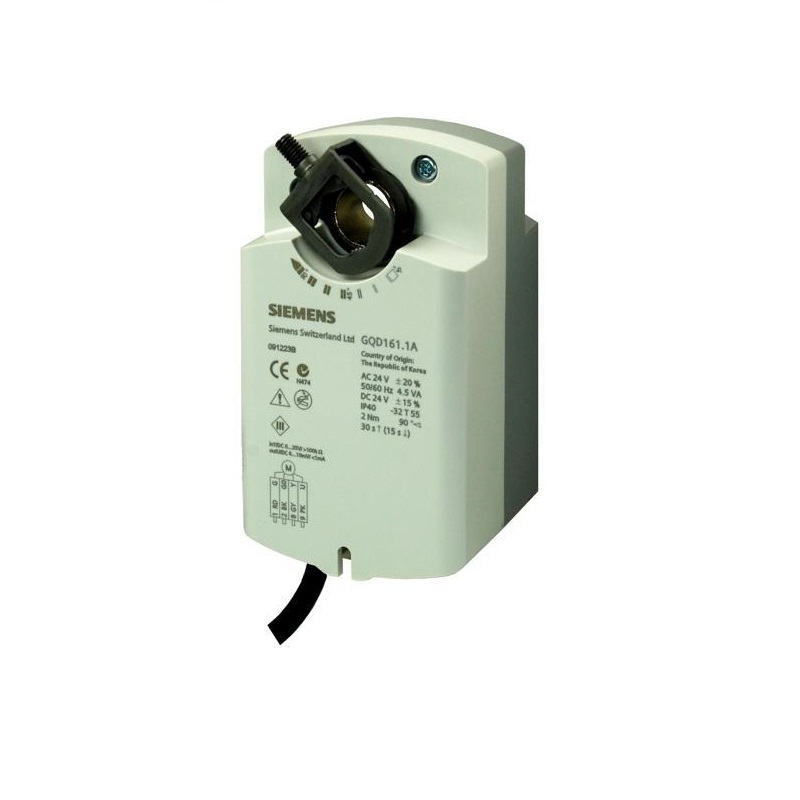

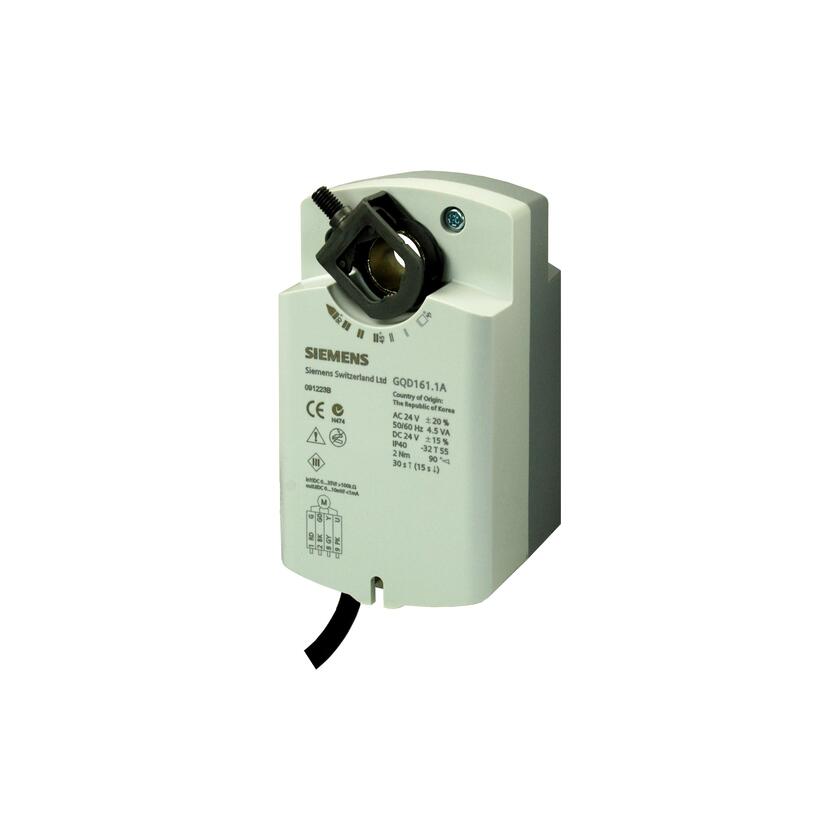

The GQD161.1A is a high-performance rotary air damper actuator with spring from Siemens offering 2 Nm nominal torque, suitable for dampers up to 0.3 m2 (friction dependent), for 0-10 V control and Open 30 s/ Close with spring 15 s rotation time. It is powered by 24 VAC and provides IP54 protection for use in HVAC and automation environments. Shaft coupling is via a self-centering adapter with mechanical angle limits from 0-90 degree. The actuator comes prewired with a 0.9 m cable.
Datasheet: Download PDF
SKU: BPZ:GQD161.1A
| Torque | 2 Nm |
|---|---|
| Air damper area | 0.3 m2 |
| Control | 0-10 V |
| Power supply | 24 VAC |
| Rotation time | Open 30 s/ Close 15 s |
