GAP196.1E

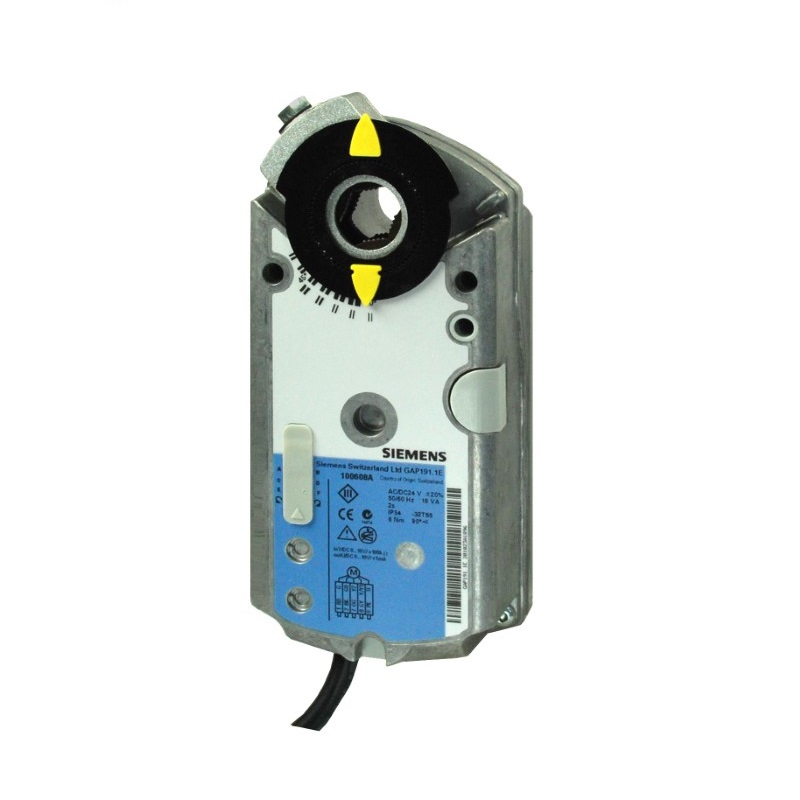

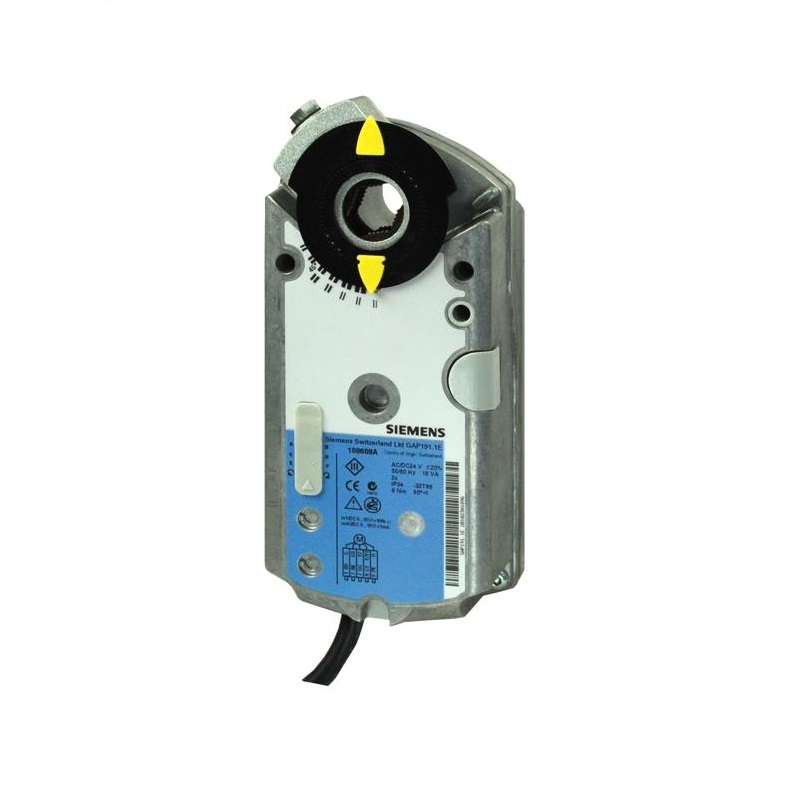

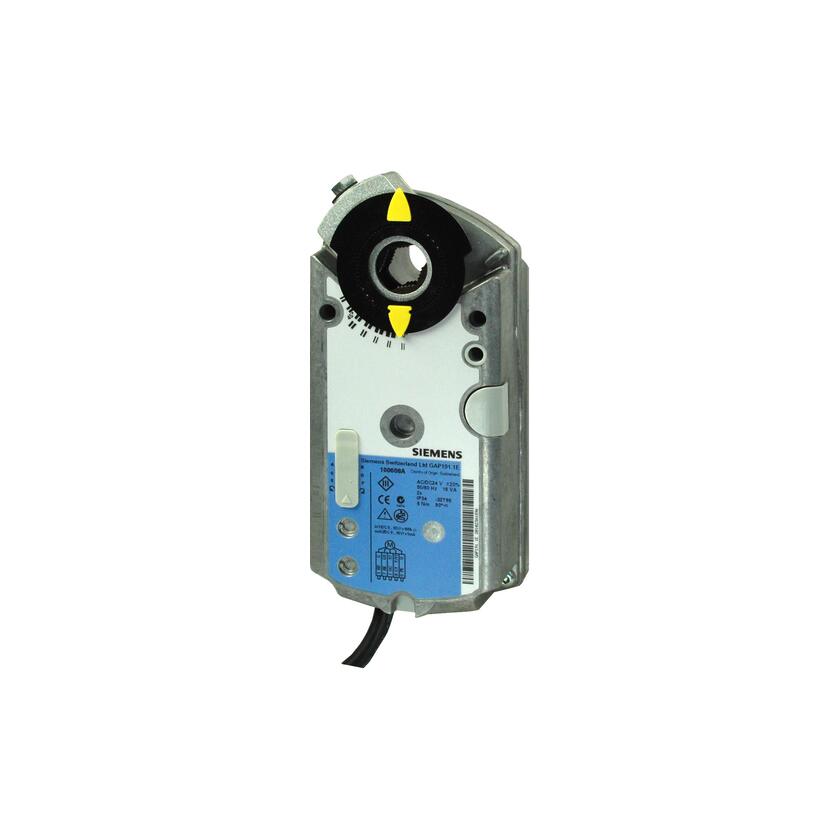

The GAP196.1E is a high-performance rotary air damper actuator from Siemens offering 6 Nm nominal torque, suitable for dampers up to 1 m2 (friction dependent), for 0-10 V, 4-20 mA, 2-position, 3-position control and 2 sec rotation time. It is powered by 24 VAC and provides IP54 protection for use in HVAC and automation environments. Shaft coupling is via a self-centering adapter with mechanical angle limits from 0-90 degree. The actuator comes prewired with a 0.9 m cable.

Datasheet: Download PDF

SKU: BPZ:GAP196.1E
